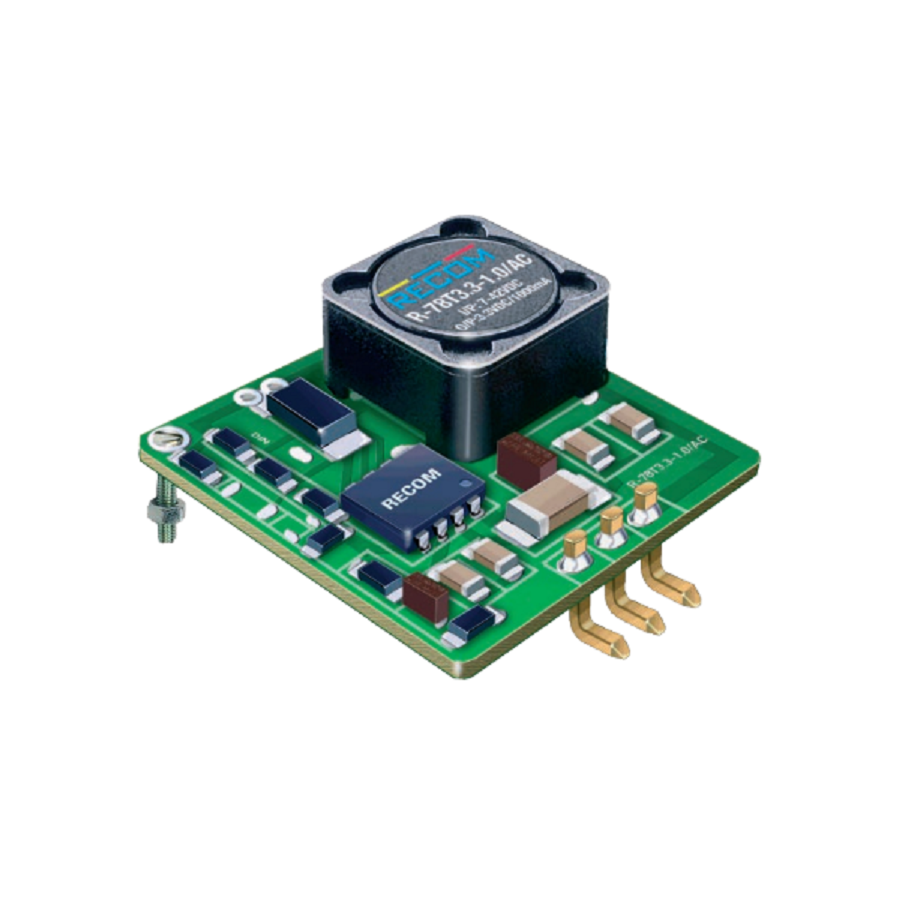

R-78T5.0-1.0/AC-TRAY
Manufacturer:
Recom Power
Mfr.Part #:
R-78T5.0-1.0/AC-TRAY
Datasheet:
Description:
DC to DC Converters SMD-3 SMD/SMT Nominal Input Voltage:25 V Min Input Voltage:8 V Max Input Voltage:42 V 92 %
| Parameter | Value |
|---|---|
| Length | 23 mm |
| Width | 27.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 10 mm |
| Packaging | Tray |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 4.5 g |
| Min Input Voltage | 8 V |
| Output Current | 1 A |
| Output Voltage | 5 V |
| Max Input Voltage | 42 V |
| Number of Outputs | 1 |
| Output Power | 5 W |
| Current - Output 1 | 1 A |
| Efficiency | 92 % |
| Voltage - Output 1 | 42 V |
| Nominal Input Voltage | 25 V |
| Max Output Voltage | 5 V |
| Voltage - Output 2 | 5 V |
| Schedule B | 8504409580 |
| Output Current-Channel 1 | 1 A |
| Output Voltage-Channel 1 | 5 V |
Stock: 20
Distributors
pcbx
pcbxUnit Price$8.36121
Ext.Price$8.36121
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.36121 | $8.36121 |
| 10 | $7.83543 | $78.35430 |
| 25 | $7.59092 | $189.77300 |
| 50 | $7.48491 | $374.24550 |
| 100 | $7.27203 | $727.20300 |
| 300 | $7.07919 | $2123.75700 |
| 500 | $6.89147 | $3445.73500 |
| 1000 | $6.70863 | $6708.63000 |
